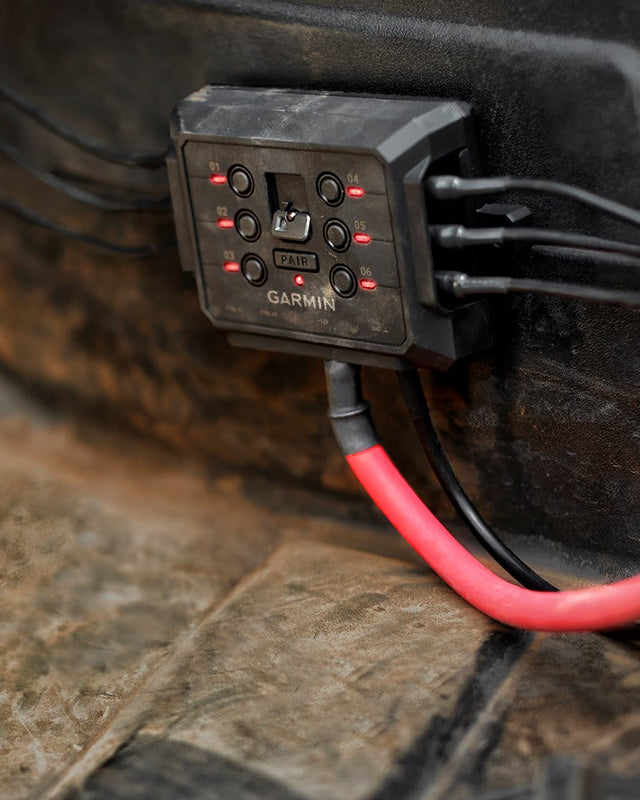

Garmin PowerSwitch™
Whether you're building out your dream Sprinter rig, hitting the road full-time, or simply streamlining your accessory setup, the Garmin PowerSwitch™ offers a cleaner, more connected way to control your vehicle’s 12-volt systems.
With up to six customizable outputs and full wireless control via Garmin GPS or smartphone, PowerSwitch eliminates clunky relay panels, dash cuts, and tangled wiring. It’s everything you need to manage your lights, fans, pumps, and gear all from a single, centralized interface.
At a Glance
- Model: Garmin PowerSwitch™ (PN 010‑02466‑00)
- Outputs: 6 independent, 30 A max each (100 A total)

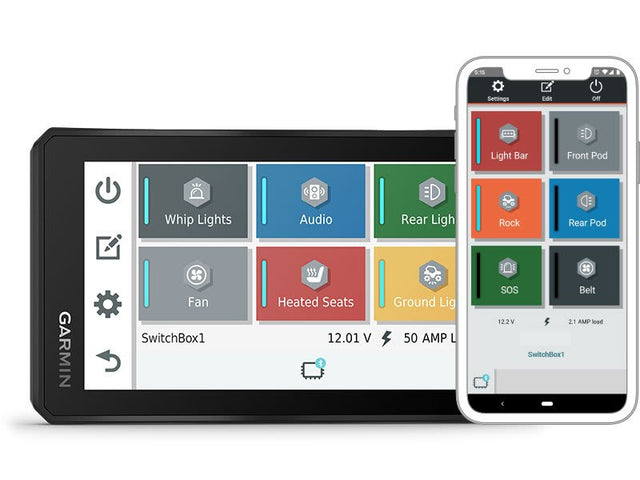

- Control: Wireless via Garmin navigator or mobile app
- Custom Labels & Icons: Yes
- Integration: Garmin head units, smartphone, optional input triggers
- Ideal For: Sprinter vans, overland rigs, off-roaders, stealth campers
Features & Benefits
- Control up to six accessories with individual 30 A outputs (100 A total system load).
- Easily operate lights, fans, fridges, pumps, compressors, and more from your Garmin GPS or mobile device.
- No need to cut into your dash or firewall.

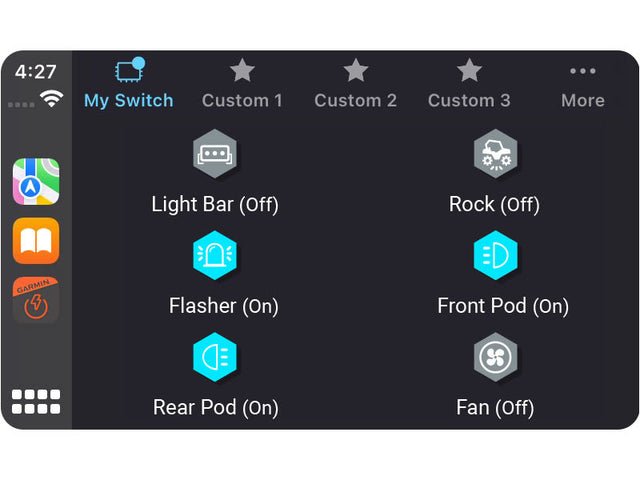

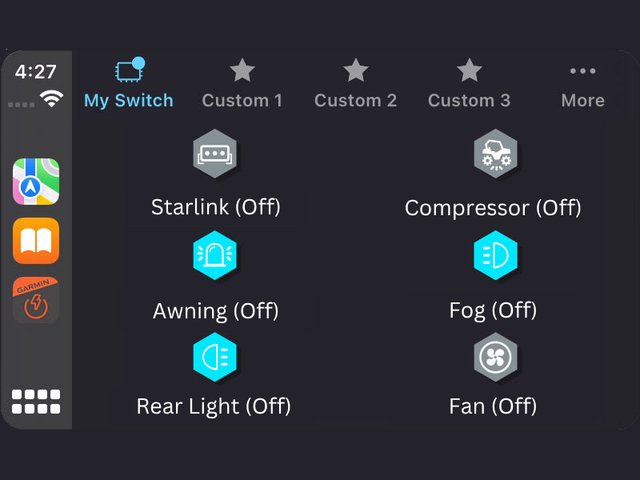

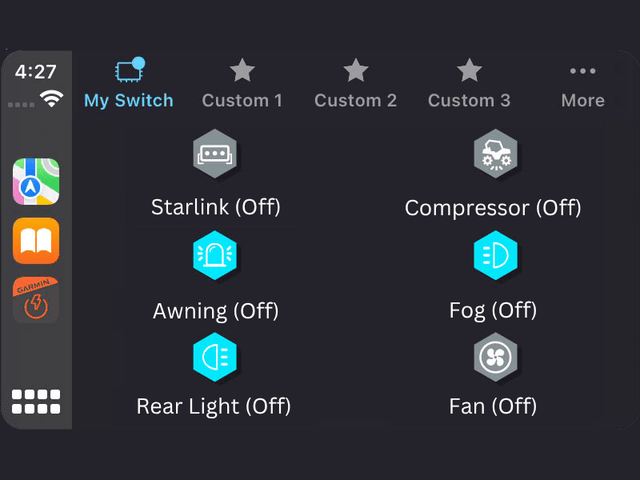

- Customize your interface with labeled switches, icons, and grouped output modes.
- Use automation triggers like high-beams, ignition, or motion sensors to activate accessories.
- Sleek, compact footprint fits in tight van spaces without bulky switch panels.
- Weather-resistant and rugged enough for off-road and overland environments.
- Works seamlessly with Garmin Tread™, Overlander®, RV 890, zūmo® XT, and others.
What’s in the Box
- 1 × Garmin PowerSwitch™
- 1 × 12V Power and output wiring harness (fused)
- 1 × Control input cable
- 1 × Mounting base & hardware
- 1 × Quick-start guide
- 1 × Product documentation
Installation at Wolf Pack
At Wolf Pack Overland, we integrate the PowerSwitch into Sprinter builds with maximum precision and minimal intrusion. Our process includes:
- Strategic mounting either under-seat, behind panels, or in utility bays
- Integrated output wiring using factory channels
- Custom automation setups—motion-activated lighting, compressor triggers, “camp mode” toggles
- Garmin head unit pairing & icon programming
- Customer walkthroughs & live demos post-installation
From concept to control, we make it seamless.
Specifications
- Number of outputs: 6 (30 A max per output, 100 A total)
- Operating voltage: 12 V DC
- Connectivity: Bluetooth, Garmin head unit link
- Compatible Devices: Garmin Tread™, Overlander®, RV 890, zūmo® XT, and more
- Weather Resistance: Yes (IPX7 rated)
- Size: Approx. 5.9″ x 3.9″ x 1.6″
- Weight: ~14.8 oz
- Mounting: Bolt-in or adhesive with vibration-resistant hardware
FAQ
Q: Can I connect high-draw accessories?
A: Yes, up to 30 A per output. Use PowerSwitch to trigger relays for larger draws.
Q: Can I group outputs (e.g. “camp mode”)?
A: Absolutely. The Garmin app lets you group and label outputs for one-tap actions.
Q: What if I lose Bluetooth connection?
A: PowerSwitch retains its last known state. Manual control returns when reconnected.
Q: How long does install take?
A: Most installs at Wolf Pack take 1–3 hours depending on accessory layout.
