Kit image follows your selected configuration. Confirm final spring and mounting hardware for your van.
Agile Pro RIP Kit for Sprinter 2500 4WD/AWD
A complete spring-and-shock upgrade with Bilstein B6 front struts, FOX rear shocks, front auxiliary shocks and reinforced rear shock mounts. Start here when you want a matched suspension without the FOX 2.5 adjustable front-strut upgrade.
Your selected configuration
4200 Lb. Rear Axle Weight / Aftermarket Alloy 16mm
A complete spring-and-shock upgrade with Bilstein B6 front struts, FOX rear shocks, front auxiliary shocks and reinforced rear shock mounts. Start here when you want a matched suspension without the FOX 2.5 adjustable front-strut upgrade.
What changes on your van?
| Front primary suspension | Bilstein B6 front struts with Agile coil assist |
|---|---|
| Rear shocks | FOX 2.5 commercial-series rear shocks |
| Front auxiliary shocks | FOX 2.0 Performance Series included |
| Rear springs | Agile replacement leaf springs selected for the loaded rear axle |

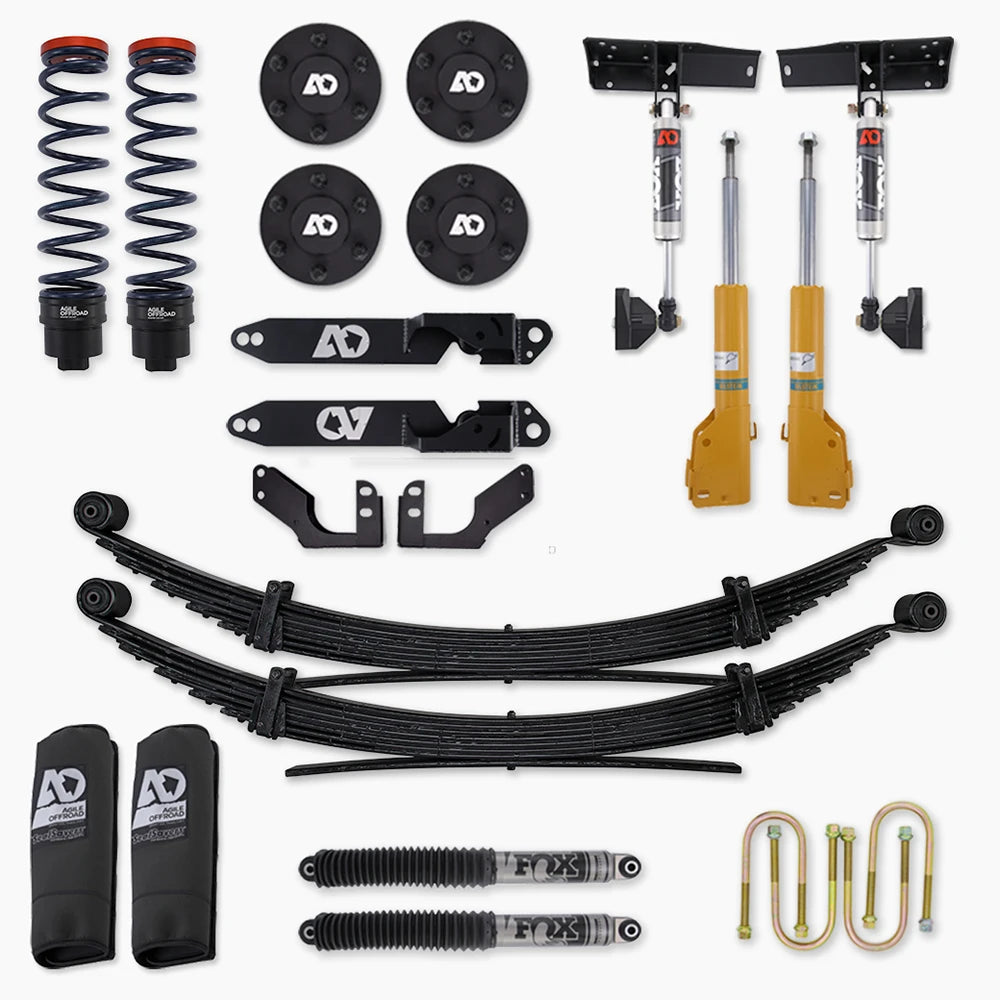

What is included?
- Bilstein B6 front struts with Agile coil assist
- FOX 2.5 commercial-series rear shocks
- Agile rear leaf spring package in your selected weight option
- FOX 2.0 front auxiliary shocks and mounts
- Application-specific mounting hardware
The 2500 package includes wheel spacers and stud-conversion hardware selected for your wheel configuration. Pro includes rear upper and lower shear brackets.
Match the springs to the van
Use the actual loaded rear axle weight, with your travel load aboard. The option labels are axle-weight selections, not additional payload capacity. A heavier spring is not automatically a better choice. Send us your axle weights and planned additions if you need help choosing. Suspension changes do not increase the vehicle’s weight ratings.
Fitment: Sprinter 2500 4WD/AWD
This product is specific to the 2500 chassis and 4WD/AWD drivetrain. Confirm the Mercedes-Benz chassis year, drivetrain, axle weights and existing modifications. For a Revel or other RV, the RV model year alone is not enough. Contact us before ordering for a 2015–2018 application or uncertain fitment.
Tell us if the van has Mercedes-Benz factory rear air conditioning. Agile identifies a fitment exclusion for its FOX 2.0 auxiliary shocks and mounting kit on vans with that system.
Plan your installation with Wolf Pack Overland
Add to quote: add your selected suspension kit, along with any other upgrades, then send us your van details. We review fitment, spring selection, installation work and scheduling, then follow up with an installed estimate.
Buying parts for a DIY installation?
The displayed price is for parts only. Installation, freight and applicable taxes are additional. After purchase, Wolf Pack Overland will send a separate invoice for freight and any applicable taxes not already collected at checkout.
Installation includes ride-height and clearance checks and alignment planning.
Warranty and follow-up
WPO installation labor carries our lifetime transferable labor warranty. Manufacturer warranties apply separately to the parts. DIY purchases do not include installation-labor coverage. WPO-installed suspension includes a free 500-mile checkup.
