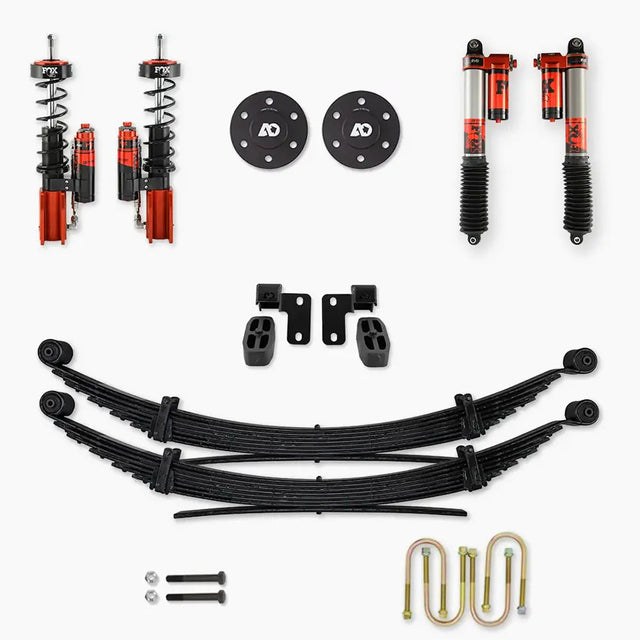

Kit image follows your selected configuration. Confirm final spring and mounting hardware for your van.
Agile Factory Race RIP Kit for Sprinter 3500 4WD/AWD
FOX 2.5 Factory Race suspension with internal-bypass damping, paired with springs selected for your loaded van. Front auxiliary shocks are included; choose conventional FOX 2.0 or external bypass.
Your selected configuration
FOX 2.0 external bypass / 6000 Lb. Rear Axle Weight
FOX 2.5 Factory Race suspension with internal-bypass damping, paired with springs selected for your loaded van. Front auxiliary shocks are included; choose conventional FOX 2.0 or external bypass.
What changes on your van?
| Front primary suspension | FOX 2.5 Factory Race front strut-and-coil assemblies |
|---|---|
| Rear shocks | FOX 2.5 Factory Race internal-bypass rear shocks |
| Front auxiliary shocks | FOX 2.0 Performance Series included; external-bypass upgrade available |
| Rear springs | Agile replacement leaf springs selected for the loaded rear axle |
Front shocks included
- FOX 2.0 auxiliary shocks: adds a separate pair of front dampers and the associated mounts.

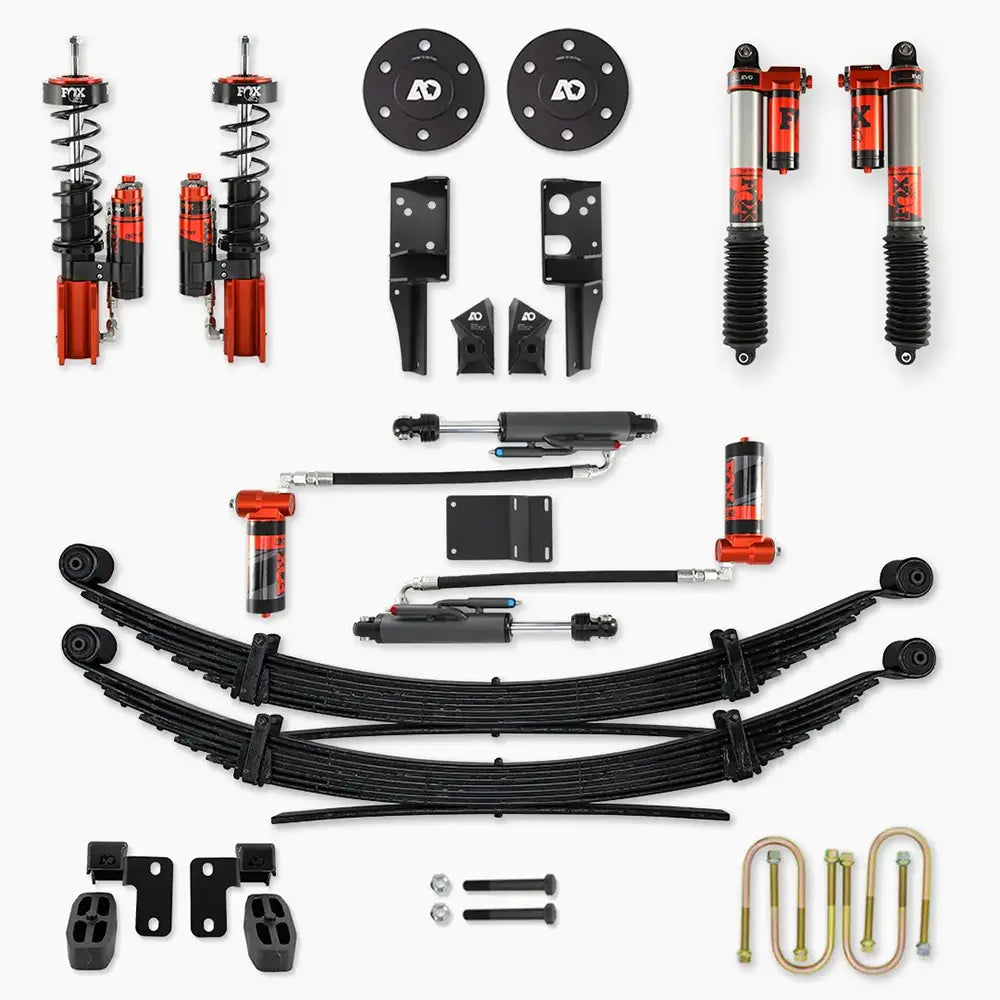

- FOX 2.0 external bypass: adds external-bypass front auxiliary shocks and their mounts for additional front damping and tuning capability.
Both choices include front auxiliary shocks and mounts. Your choice does not change the main strut or rear-shock family.
What is included?
- FOX 2.5 Factory Race front strut-and-coil assemblies
- FOX 2.5 Factory Race internal-bypass rear shocks
- Agile rear leaf spring package in your selected weight option
- Front auxiliary shocks and mounts in your selected configuration
- Application-specific mounting hardware
3500 hardware review: Confirm the final rear mounting and leveling hardware for your chassis. The boxed DIY kit and a WPO-installed configuration may differ. WPO does not use lift blocks in its suspension installations; we confirm the spring and ride-height solution in your installed estimate. Confirm wheel, tire and spacer compatibility before ordering, especially for a super-single conversion.
Match the springs to the van
Use the actual loaded rear axle weight, with your travel load aboard. The option labels are axle-weight selections, not additional payload capacity. A heavier spring is not automatically a better choice. Send us your axle weights and planned additions if you need help choosing. Suspension changes do not increase the vehicle’s weight ratings.
Fitment: Sprinter 3500 4WD/AWD
This product is specific to the 3500 chassis and 4WD/AWD drivetrain. Confirm the Mercedes-Benz chassis year, drivetrain, axle weights and existing modifications. For an EKKO, Open Trail or other RV, the RV model year alone is not enough. Contact us before ordering for a 2015–2018 application or uncertain fitment.
Tell us if the van has Mercedes-Benz factory rear air conditioning. Agile identifies a fitment exclusion for its FOX 2.0 auxiliary shocks and mounting kit on vans with that system.
Plan your installation with Wolf Pack Overland
Add to quote: add your selected suspension kit, along with any other upgrades, then send us your van details. We review fitment, spring selection, installation work and scheduling, then follow up with an installed estimate.
Buying parts for a DIY installation?
The displayed price is for parts only. Installation, freight and applicable taxes are additional. After purchase, Wolf Pack Overland will send a separate invoice for freight and any applicable taxes not already collected at checkout.
Installation includes ride-height and clearance checks and alignment planning. If coilover preload adjustment is necessary, we remove the coilover and use a spring compressor in accordance with the applicable installation instructions.
Warranty and follow-up
WPO installation labor carries our lifetime transferable labor warranty. Manufacturer warranties apply separately to the parts. DIY purchases do not include installation-labor coverage. WPO-installed suspension includes a free 500-mile checkup.
